Is AMD GPU better than Nvidia on Linux? It depends ๐Ÿž

Is AMD GPU better than Nvidia on Linux? It depends ๐Ÿž

I recently had a chance to try out AMD GPU on Linux, and to my surprise, it was not really a pleasant experience.

Hung Vu's photo
Hung Vu
ยทOct 25, 2022ยท

8 min read

Subscribe to my newsletter and never miss my upcoming articles

Play this article

Table of contents

As a casual Nvidia-on-Linux user, I have had a fair share of problems with my GTX 1050 over the years. Nvidia's relationship with the Linux community is well known, so there is not much more to discuss. With that said, I decided to go with an AMD graphic card (GPU) for my new laptop, in the hope that it can better streamline my experience. However, that is not really the case at the moment, at least on Ubuntu-based distros, 22.04 and onwards.

This article is about my experience enabling my AMD Vega 8 GPU features on PopOS 22.04 (Xorg). Correction to any information provided in the article is welcome!

What are the different layers of drivers in Linux?

Generally said, there are three different layers in Linux.

  • Kernel-level drivers: These are usually included in the Linux kernel (but can also be installed down the road). The kernel-level drivers are at the bottom of the software stack. They have the highest privilege, run in allocated kernel-only memory space (kernel space driver), and allow OS to communicate with the hardware. For example, kernel-level drivers are radeon, amdgpu, and amdgpu-pro.

  • Graphics API drivers: They usually reside in a user space memory location (user space drivers). These drivers provide common APIs based on open standards such as OpenGL, Vulkan, and act as an intermediate layer so applications can utilize graphic cards. For example, Mesa is an open-source graphics API driver which implements OpenGL and Vulkan standards.

  • Application-level drivers: These user space drivers stay on the top of the software stack and provide an abstraction layer over graphics API drivers. To avoid the complexity of interacting with graphics APIs, application drivers provide a translation layer common for features such as minimizing screen or changing display resolution for the display server (Xorg in my case). For example, xf86-video-<something> such as xf86-video-amdgpu, and xf86-video-modesetting are application-level drivers.

There is much more about the hierarchy and relationship between the layers, but they are outside of my domain. For the sake of this article, we only need to be aware of their categorization.

AMD GPU works out-of-the-box thanks to kernel-level drivers

When everyone says "AMD GPU works out of the box on Linux", it is because AMD GPU kernel space drivers are open-source and included in the Linux kernel. The three common ones are radeon, amdgpu, and amdgpu-pro. One will be chosen and loaded based on the installed GPU. To check for a currently loaded kernel space GPU driver, use the following command:

lspci -k | grep -A 3 -E "(VGA|3D)"

This results in:

pop-os@pop-os:~$ lspci -k | grep -A 3 -E "(VGA|3D)"
04:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Barcelo (rev c1)
    Subsystem: Dell Device 0b38
    Kernel driver in use: amdgpu
    Kernel modules: amdgpu

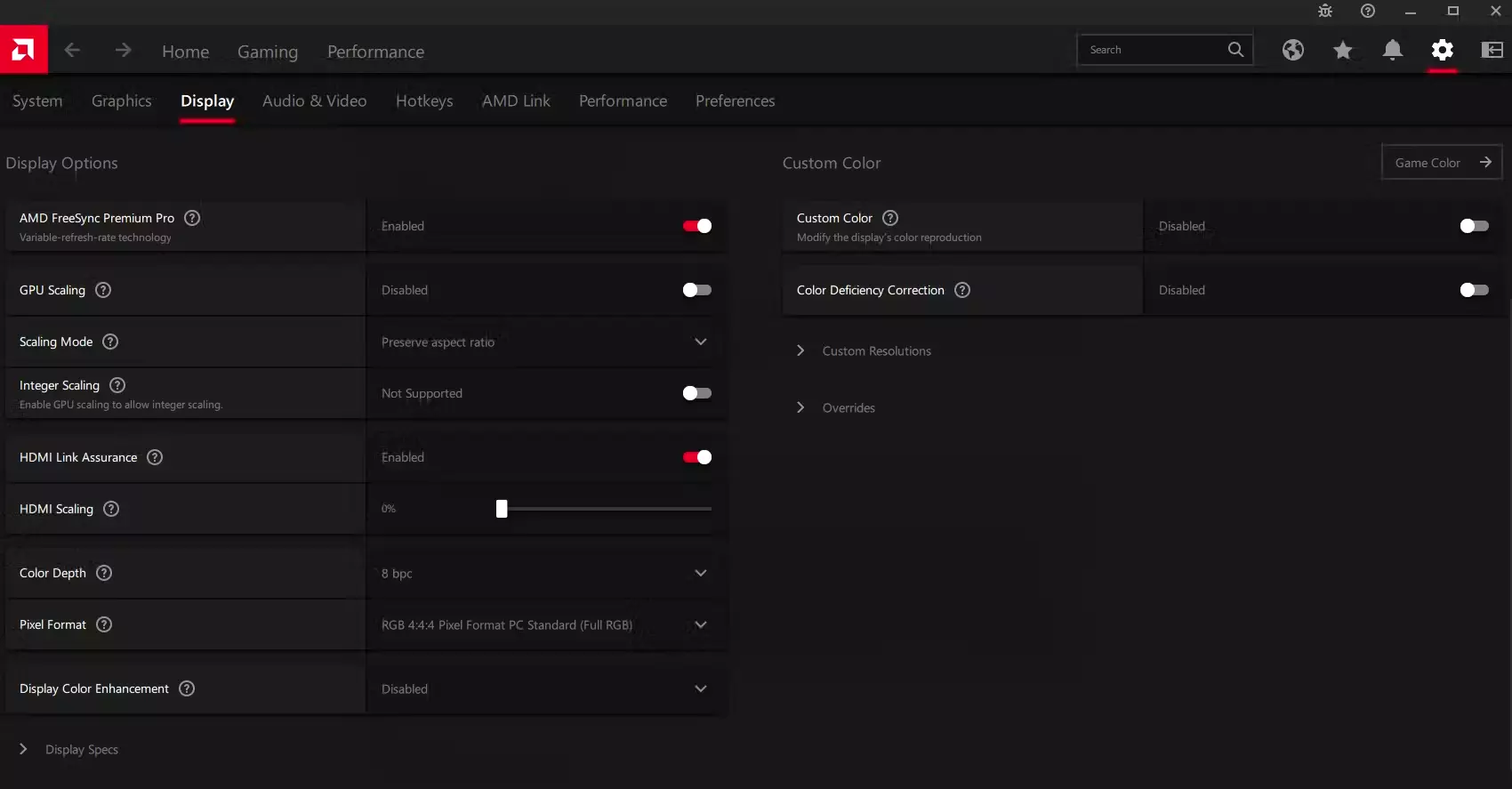

Indeed, my GPU worked out of the box, but there was a catch. None of the "advanced" features such as Free Sync, 10-bit color, low latency, etc. could be enabled, at least not in a trivial way. In Windows, these features can be easily enabled using AMD Adrenalin.


Xorg requires a vendor-specific Device Dependent X (DDX) for advanced GPU features

Xorg is a display server that is responsible for all GUI portions of the operating system and is essentially a base of the desktop environment itself. As mentioned, there is a translation layer so Xorg can communicate with graphics API underneath. In absence of vendor-specific DDX, there is a generic xf86-video-modesetting driver for this purpose. It can work with any GPU vendor, but GPU-specific features will be limited. For example, Free Sync on AMD GPU, G-Sync on Nvidia GPU, and so on.

# ~/.local/share/xorg/Xorg.0.log

[    26.451] (II) LoadModule: "modesetting"
[    26.452] (II) Loading /usr/lib/xorg/modules/drivers/modesetting_drv.so
[    26.475] (II) Module modesetting: vendor="X.Org Foundation"
[    26.475]     compiled for 1.21.1.3, module version = 1.21.1
[    26.475]     Module class: X.Org Video Driver
[    26.475]     ABI class: X.Org Video Driver, version 25.2

An attempt to enable these features (in /etc/X11/xorg.conf.d/) without a correct DDX installed beforehand may result in a non-bootable device. With that said, to enable my Vega 8 GPU features, I needed to install xf86-video-amdgpu.

On a side note, using apt list --installed showed xserver-xorg-video-<something> on my system. I'm not certain about their relationship with xf86-video-<something>, so any explanation is appreciated.

pop-os@pop-os:~$ apt list --installed
...
xserver-xorg-video-all/jammy,now 1:7.7+23ubuntu2 amd64 [installed,automatic]
xserver-xorg-video-amdgpu/jammy,now 22.0.0-1build1 amd64 [installed,automatic]
...

xf86-video-amdgpu has no official installation instruction

Here is an official repository of xf86-video-amdgpu and it has no installation instruction. I searched around a fair bit and landed on this 2019 article from ubuntulog. That said, the approach does not work for me due to multiple dependency issues such as missing libdrm and gdm3. With that said, my next try is to use an installation package from AMD website.

AMD GPU driver installer for PopOS 22.04 is broken (or any Ubuntu-based 22.04 distros)


On AMD website, they have a selection of drivers for Linux distros. As PopOS is Ubuntu-based, I decided to use an AMD GPU driver for Ubuntu x86 64-Bit (22.04). It is a deb package, so installation should be easy enough, but no. AMD GPU driver installation process is no less of a rabbit hole compared to Nvidia counterpart (manual installation, not considering PopOS out-of-the-box support for Nvidia GPU).

Problem 1: PopOS is not supported by default

The deb package is just a bundle of installation scripts along with necessary files. With that said, I needed to run the command amdgpu-install afterward to initiate a true driver installation.

pop-os@pop-os:~$ amdgpu-install
Unsupported OS: /etc/os-release ID 'pop'

The installation does not support PopOS by default. Fair enough, because this is only marketed for Ubuntu (also Debian and Linux Mint, as you will see below), I needed to do some modifications to an installation script, which locates in /usr/bin.

# /usr/bin/amdgpu-install.sh
# Run: sudo gedit amdgpu-install
...
        case "$ID" in
        ubuntu|linuxmint|debian|pop) # add pop at the end (line 293 at the time of writing, or Ctrl-F to find)
            PKGUPDATE="apt-get update"
            PKGMAN=apt-get
            OS_CLASS=debian
            :
            ;;
...

Problem 2: Package linux-modules-extra-5.18.10-76051810-generic has no installation candidate

Now the installer could run on PopOS, I ran amdgpu-install and an error below was shown.

...
Package linux-modules-extra-5.18.10-76051810-generic is not available, but is referred to by another package.
This may mean that the package is missing, has been obsoleted, or
is only available from another source

E: Package 'linux-modules-extra-5.18.10-76051810-generic' has no installation candidate

After a bit of lookup, it seems like an extra kernel content is included in a standard kernel in PopOS, meanwhile, linux-modules-extra-...-generic is only a virtual package, hence the error. I did try to play around with the kernel, but my machine ended up in a non-bootable state. After making my laptop bootable again, I decided if an installation script can be modified somehow. Therefore, I search for references of linux-modules-extra-...-generic and commented them out.

# /usr/bin/amdgpu-install.sh
# Run: sudo gedit amdgpu-install
# Comment out the line belows, lines 411-414 at the time of writing, or Ctrl-F to find
...
        if apt-cache show linux-modules-extra-$(uname -r) &>/dev/null
        then
            PACKAGES=(${PACKAGES[*]} linux-modules-extra-$(uname -r))
        fi
...

Great! Now that no installation candidate error went away, but then ...

Problem 3: rocm-llvm has unmet dependencies and does not support Ubuntu 22.04

I reran amdgpu-install, then the error below was shown.

The following packages have unmet dependencies:
 rocm-llvm : Depends: python but it is not installable
             Depends: libstdc++-5-dev but it is not installable or
                      libstdc++-7-dev but it is not installable
             Depends: libgcc-5-dev but it is not installable or
                      libgcc-7-dev but it is not installable
             Recommends: gcc-multilib but it is not going to be installed
             Recommends: g++-multilib but it is not going to be installed
E: Unable to correct problems, you have held broken packages.

Apparently, rocm-llvm is not compatible with Ubuntu 22.04. I stumbled on two issues discussing this matter ROCm #1713 and ROCm #1730. The installation problem has existed since the initial release of Ubuntu 22.04 in April 2022. Although ROCm v5.3.0 provides support for Ubuntu 22.04, the change has not made into AMD GPU official driver installation package yet.

I did not expect my hands-on experience to become like this, especially on an LTS release like Ubuntu/PopOS 22.04. This was the end of my installation attempt, and I decided to duo-boot into Windows for the time being.

Wrap up

Is AMD GPU a great choice on Linux? I would say it still is. With AMD GPU, basic features are supported out of the box and you can do graphic-intensive tasks on your newly purchased device without issue. However, if you would like to have access to an advanced feature set, or do some specific task like machine learning, then I suppose you will not have an easy time until AMD furthers its support to different distros and patches such broken bugs in a timely manner.

What is your experience with AMD GPU on Linux? Please let me know in the comment section down below.
